Overview

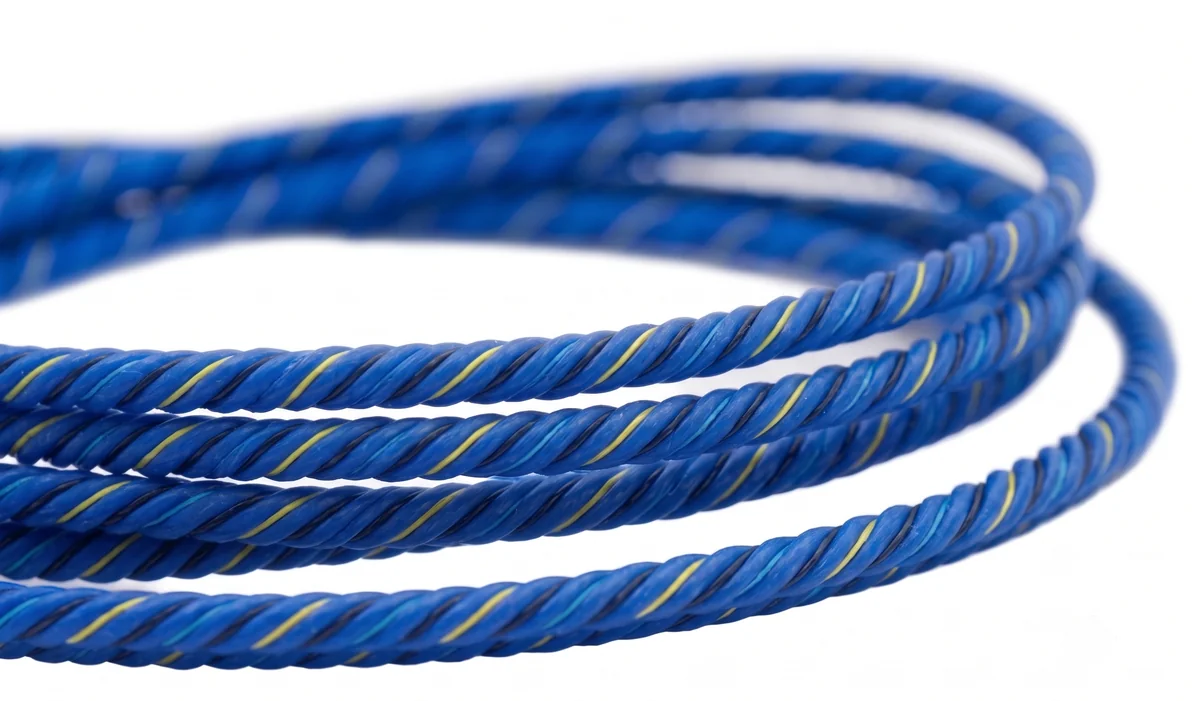

The ATYSEN AT-MDC-3/7/10/15/20 is a high-performance water and conductive liquid leak detection cable, designed to accurately detect liquid leakage at any point along its length. When used with an ATYSEN-compatible leak detection console module, the system provides real-time visual indication, enabling a faster response and helping to minimize damage from leakage.
The cable is manufactured using conductive polymerization technology and advanced polymer materials, ensuring excellent mechanical strength, corrosion resistance and long service life. Its spiral construction with no exposed metal parts allows prolonged use even in harsh or corrosive environments.
Key Features & Advantages
Rapid Leak Detection
Instantly detects the presence of water or conductive liquid along the entire length of the cable.
Accurate Leak Location
When connected to an ATYSEN Sensor Interface unit, leaks are detected and a visible indication is shown on the sensor unit.
Cable Integrity Monitoring
Detects any break, cut or open circuit through the cable.
Fast Reset and Reusability
Non-absorbent construction allows the cable to be reset within seconds after the liquid is removed.
Low-Halogen Construction
Manufactured using low-halogen materials for enhanced fire safety.
Low Smoke Emission
Emits smoke with lower optical density and slower dispersion when exposed to high heat, compared to standard cables.
High Sensitivity
Immediate response upon contact with water or conductive liquids.
Uniform Resistance
Ensures stable and reliable positioning accuracy.
Robust Spiral Structure
Enhances mechanical strength and reduces false alarms.
No Exposed Metal
Suitable for corrosive and humid environments.
Low False Alarm Rate
High resistance to electromagnetic interference.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ATYSEN |
| Model | AT-MDC-3/7/10/15/20 |
| Detection type | Instant water leak detection |
| Length | 3, 7, 10, 15, 20 meters (custom lengths available) |
| Detection principle | Resistive change based on conductive liquid contact |
| Resistance uniformity error | ≤ 0.5% |
| Diameter | 5.5 mm |
| Construction | 4 core, spiral structure, no exposed metal |
| Sensing wire | 2 spirally twisted wires |
| Continuity wire | 2 spirally twisted wires |
| Material | Jacketed conductive polymer |
| Reusability | Yes |
| Corrosion resistance | Resistant to slight corrosion |
| Operating environment | Indoor / semi-harsh industrial environments. Temperature up to 75°C |
Product Identification Codes
| Code | Description |
|---|---|
| AT-ALC-C | Leak detection cable for water and conductive liquids, custom length |
| AT-MDC-3 | 3 meters, leak detection cable for water and conductive liquids |
| AT-MDC-7 | 7 meters, leak detection cable for water and conductive liquids |
| AT-MDC-10 | 10 meters, leak detection cable for water and conductive liquids |
| AT-MDC-15 | 15 meters, leak detection cable for water and conductive liquids |
| AT-MDC-20 | 20 meters, leak detection cable for water and conductive liquids |
Specifications are subject to change without notice. Please refer to the latest data sheet for current information.
