Overview

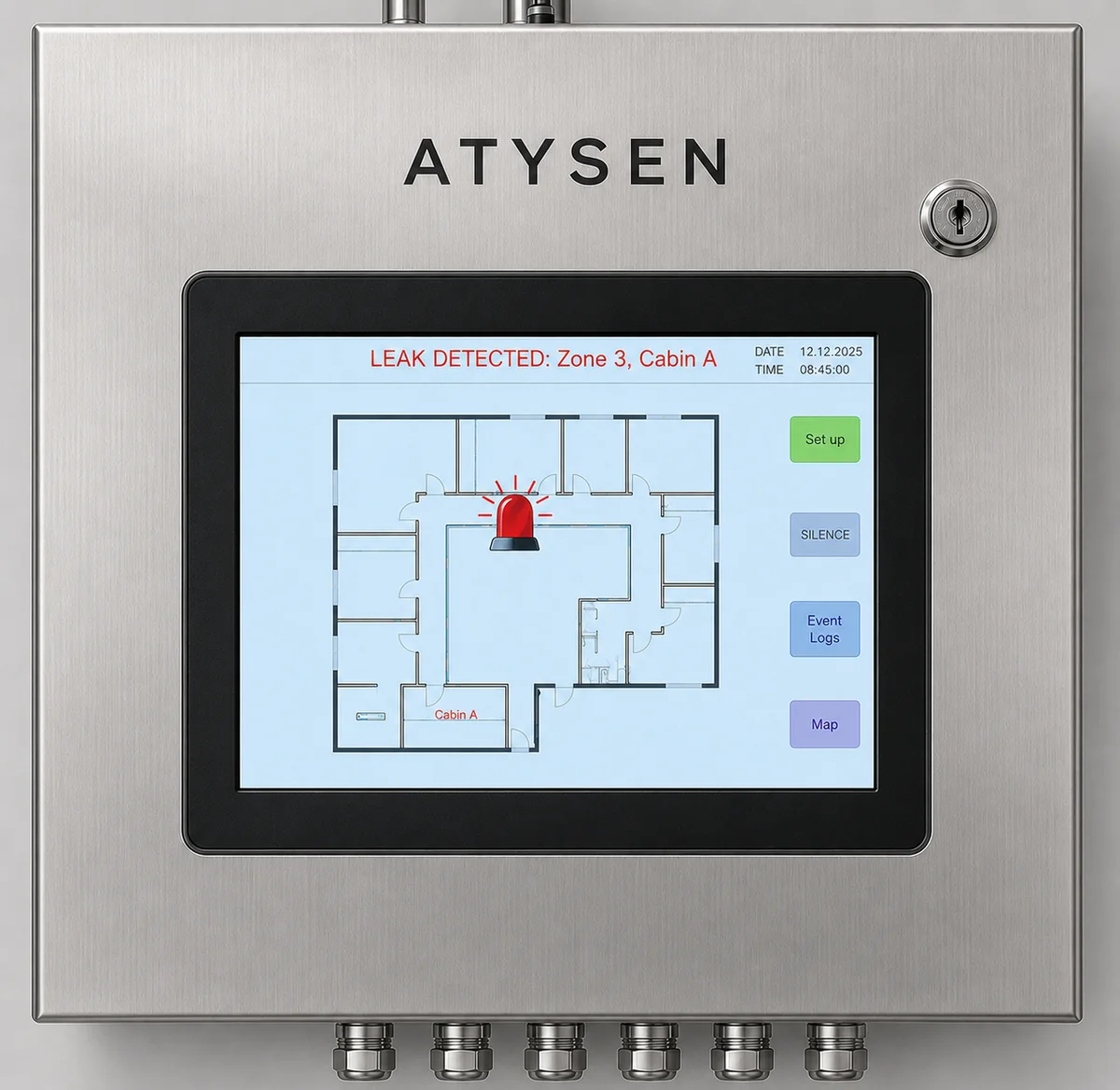

The Intelli Panel series digital leak detection panel is an advanced digital control and monitoring system designed for precise leak detection and fault localization. It serves as the central hub for ATYSEN digital sensing solutions and provides continuous monitoring of water, acid, base and hydrocarbon leaks.
Engineered for mission-critical environments such as data centers, industrial plants, commercial facilities and fuel storage areas, the Intelli Panel ensures reliable performance, real-time fault reporting and seamless Building Management System (BMS) integration.
Key Features & Advantages
Dynamic Zone / Area Layout
Define the zones and areas of the building.
Continuous Monitoring
Monitoring of water leak sensing cables and probes.
Multi-Detection Capability
Detects and reports multiple simultaneous leaks and cable breaks in the network.
Inbuilt Audible Alarm
Built-in audible alarm for easy alerting.
Precision Leak Detection
Instantly detects the presence of water or conductive liquid.
Accurate Identification
Accurate identification of cable break faults.
Digital System Integration
Fully compatible, with seamless communication to ATYSEN leak detection interface modules.
BMS Connectivity
Sends real-time alarms and status for leak, cable break and common faults to Building Management Systems. Can activate external alarms, beacon lights or automatic shut-off systems.
Rugged Construction
Stainless steel enclosure for longevity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ATYSEN |
| Model | AT-MTP-SA-107 / AT-MTP-SA-110 / AT-MTP-RD-107 / AT-MTP-RD-110 |
| Standard size (diagonal) | 7 inch, 10 inch ; 10 inch+ size on request |
| Resolution | 800 x 480 pixel |
| Touchscreen | Resistive |
| Input power | 230 V AC |
| Relays | Leak / Cable break / Common faults |
| Communication | Modbus TCP/IP connection with BMS ; 1 – Ethernet (0 - 10/100) ; 1 – USB 1 (Host v2.0, max. 500 mA) |
| Event logs | Up to 500 events |
| Internal memory | 4 GB |
| Material | Stainless steel enclosure |
| SIM module connectivity | Up to 80 in redundancy |
| Protection rating | IP52 |
| Corrosion resistance | Resistant to certain corrosion |
| Operating environment | Industrial / commercial. 0° to 55°C (vertical installation) |
System Capabilities
- Leak detection
- Cable break detection
- SIM module overload alert
- Communication fault and power failure alert
- Audible alarm
Smart Maintenance Mode
- Temporarily isolate selected zones without triggering false alarms.
- The system automatically restores normal monitoring after a defined time.
Product Identification Codes
| Code | Description |
|---|---|
| AT-MTP-SA-107 | 7 inch touch screen with non-redundant configuration |
| AT-MTP-SA-110 | 10 inch touch screen with non-redundant configuration |
| AT-MTP-RD-107 | 7 inch touch screen with redundant configuration |
| AT-MTP-RD-110 | 10 inch touch screen with redundant configuration |
Specifications are subject to change without notice. Please refer to the latest data sheet for current information.
