Overview

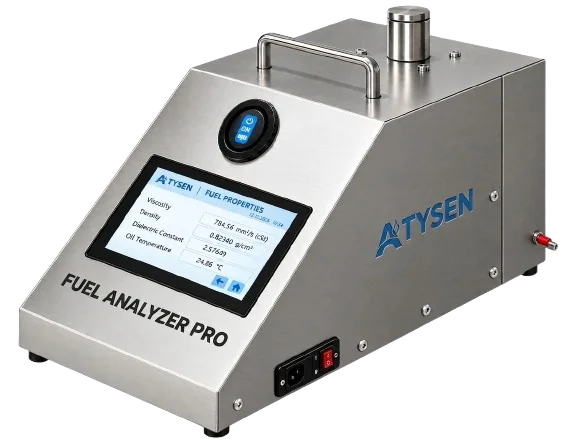

The ATYSEN Fuel Analyzer Pro is an innovative solution for fuel quality analysis. Tailored for industrial, marine, aviation and data center applications, it integrates advanced sensors, flow control systems and a 7-inch Human-Machine Interface (HMI) display within a single unit to deliver real-time insights into critical fuel properties.
The system measures viscosity, density, temperature, dielectric constant, solid contamination and water/moisture content, adhering to ISO 4406 standards. Offering robust hardware, a superior user experience and flexible integration, it supports standalone and integrated setups, ensuring exceptional reliability and adaptability.
Key Features & Advantages
Continuous Measurement
Viscosity, density, temperature, dielectric constant, solid contamination and water / moisture contamination.
Digital Display and Alarm
Alarms for low, medium and high contamination levels.
HMI Touch Screen
7-inch HMI touchscreen shows real-time analysis data.
Flexible Modes
Mountable on a fuel polishing unit, or manual sampling using the built-in HMI.
Monitoring System Connectivity
Connects with the Fuel Analyzer monitoring system.
High Sensitivity
Data updates in seconds, ensuring precision and timeliness in fuel quality monitoring.
Real-time Polishing Initiation
Initiate polishing based on real-time fuel parameters.
Rugged Industrial Construction
Dust and water protection.
Reusable and Low Maintenance
Designed for repeated use without performance degradation.
Data Centers
Maintains HSD tank quality, optimizes Fuel Polishing Unit operation and ensures backup power system (diesel generator) reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Viscosity | 0.0 to 50.0 cP ; assesses dynamic viscosity for flow and engine performance |
| Density | 0.000 to 1.500 gm/cc ; evaluates fuel composition and quality |
| Temperature | -40°C to 150°C ; ensures optimal analysis conditions |
| Dielectric constant | 1.00 to 6.00 ; analyzes dielectric properties for contaminants |
| Solid contamination | ISO 4406 codes - 4, 6, 14, 21 microns ; quantifies particulate matter |
| Water / moisture contamination | %RH or ppm ; detects water in oil, microbial growth and rust |
| Supported fluids | Engine oil, hydraulic oil, compressor oil, transformer oil, gear oil, transmission oil, diesel fuel, biodiesel fuels, kerosene, heavy fuel oil, and other fuels within specified ranges |
| Communication interface | PC/PLC integration ; high-quality communication cable and a CAN J1939 compliant 4-pin connector for reliable data transfer to the HMI |
| Fuel property sensing | Tuning fork technology to simultaneously measure multiple parameters |
| HMI | Capacitive touch ; displays ISO 4406 metrics, RH ; data logging and export option |
| Operating environment | Industrial / commercial |
System Integration
- The Fuel Property Sensor assesses viscosity, density, dielectric constant and temperature.
- The Particle Detection Unit monitors solid contamination and water content.
Operating Modes
- Online: mountable on pipelines with a maximum line pressure of 20 bar, connected to the nearest PLC panel, which relays data to the HMI for display.
- Offline: requires manual sampling from a pipeline via a sampling point, featuring an inbuilt HMI for direct display.
Specifications are subject to change without notice. Please refer to the latest data sheet for current information.
